Mitoxantrone Dihydrochloride (NSC 301739) Mitoxantrone Dihydrochloride inhibitor interaction with ds-DNA base pairs
Copy code to add this image to your page
The anthracenedione antineoplastic agent Mitoxantrone Dihydrochloride (NSC 301739) exerts its cytotoxic effects primarily through physical association with double-stranded DNA (ds-DNA). As a planar polycyclic molecule, this agent inserts between neighboring nucleotide base pairs, displaying strong thermodynamic affinity for guanine-cytosine (GC) rich regions. Characterization of these nucleic acid interactions provides essential parameters for evaluating drug efficacy and monitoring therapeutic concentration levels. Within clinical and bioanalytical settings, tracking how a Mitoxantrone Dihydrochloride inhibitor engages target duplexes yields valuable insight into small-molecule DNA binding dynamics. The planar ring system slides into the hydrophobic pocket between adjacent base pairs, altering the native helical pitch and local winding angle.

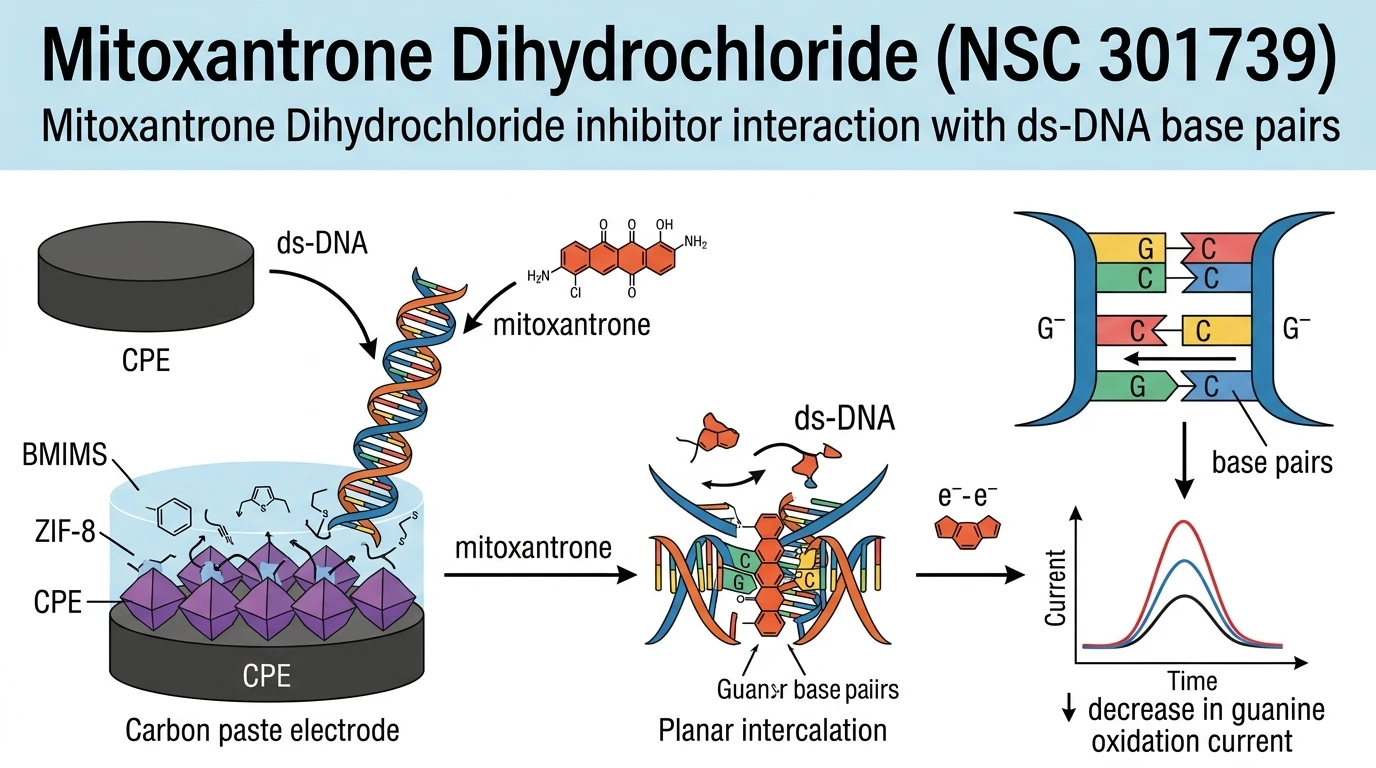

Electroanalytical strategies offer high sensitivity for investigating small-molecule interactions with nucleic acids. To achieve precise quantitation, an ultrasensitive electrochemical biosensor was fabricated using a carbon paste electrode (CPE) modified with zeolitic imidazolate framework-8 (ZIF-8) and the ionic liquid 1-butyl-3-methylimidazolium methanesulfonate (BMIMS). The nanostructured porous ZIF-8 framework provides a high surface-area-to-volume ratio that enhances immobilization capacity for double-stranded DNA constructs. Zinc ions coordinated to 2-methylimidazole rings form a stable crystalline architecture that protects nucleic acids from thermal denaturation. Simultaneously, the ionic liquid BMIMS acts as a conductive binder that improves electron transfer kinetics across the electrode-electrolyte interface. This synergistic combination stabilizes the immobilised biological recognition layer while preserving native duplex conformation.
The primary signal transduction mechanism relies on monitoring the intrinsic oxidation profile of guanine bases. In native double-stranded DNA, unstacked or accessible guanine residues undergo irreversible oxidation at characteristic anodic potentials during voltammetric sweeps. Upon introduction of Mitoxantrone Dihydrochloride (NSC 301739), planar intercalation into the GC-rich domains alters the spatial arrangement of the nitrogenous bases. Intercalation causes physical shielding of the electroactive purine moieties, restricting their access to the electrode surface. In addition, hydrogen bonding between the drug side chains and the phosphate backbone locks the structure into a rigid conformation. Consequently, target engagement triggers a concentration-dependent attenuation of the guanine oxidation current. This decrease in anodic peak current serves as a direct quantitative transducer for measuring the extent of small-molecule binding.
Assay performance depends strictly on controlling ambient physical parameters during the interaction phase. Under optimized experimental conditions—specifically maintaining an acidic pH of 4.8 in acetate buffer, a constant temperature of 25°C, and an incubation duration of 12 minutes—the DNA/BMIMS/ZIF-8/CPE biosensing platform demonstrated robust analytical characteristics. The acidic environment optimizes protonation states of both the nitrogenous bases and the drug functional groups, facilitating electrostatic pre-concentration. The biosensor achieved a linear dynamic range spanning from 8.0 nM to 110 µM. The calculated limit of detection reached 3.0 nM under these specified in vitro conditions. These operational parameters demonstrate high analytical sensitivity for trace-level drug detection in complex aqueous solutions.
Computational modeling provided independent theoretical verification of the proposed intercalative mode. Molecular docking simulations revealed that the planar tricyclic core of the molecule slips directly between adjacent GC base pairs within the DNA double helix. Secondary stabilization arises from direct hydrogen bonding interactions between the peripheral hydroxyl and aminoalkylamino side chains and the surrounding nitrogenous base pairs. The calculated binding energy of -6.7 kcal/mol confirms favorable thermodynamic spontaneity for the binding event. Finally, practical assay utility was verified through recovery tests performed in real pharmaceutical injection samples. Matrix interference remained minimal, demonstrating high selectivity for the analyte amidst common excipients.
Selectivity trials further demonstrated that non-intercalating compounds and common biological interferents fail to induce similar current drops at equivalent concentrations. Ascorbic acid, uric acid, and simple nucleosides produced minimal deviation in the baseline anodic signal. The structural specificity of the sensor stems directly from the tight spatial constraint imposed by the GC base pair intercalation site. Because the biosensor platform integrates physical nanostructuring with specific bio-molecular recognition, it provides a reliable, label-free alternative to traditional chromatographic and spectroscopic analytical techniques.
Electrochemical Quantification and Structural Docking Metrics
Copy code to add this image to your page
Mitoxantrone Dihydrochloride functions primarily via planar intercalation between guanine-cytosine base pairs in double-stranded DNA. Hydrogen bonding with nitrogenous bases stabilizes the drug-DNA complex. In electrochemical systems, this binding occludes electroactive guanine moieties, producing a concentration-dependent reduction in guanine oxidation peak current.
Attenuation of Guanine Oxidation Currents Reflects Intercalation
The modified DNA/BMIMS/ZIF-8/CPE sensor relies on monitoring purine electro-oxidation signals. Guanine residues yield a distinct anodic peak near +1.0 V under differential pulse voltammetry. Upon exposure to the Mitoxantrone Dihydrochloride inhibitor, the peak current decreases systematically. Signal loss correlates directly with drug concentration across three orders of magnitude. The linear response spans from 8.0 nM to 110 µM. Under tested assay conditions (pH 4.8, 25°C, 12 min incubation), the lower detection limit reached 3.0 nM. Electroactive sites become sterically blocked as the planar molecule inserts into double-stranded DNA. Electron transfer rates drop accordingly. These empirical observations confirm that signal attenuation reflects physical occupancy of guanine-cytosine base pairs rather than nonspecific electrode fouling.
Energetics of Insertion into Guanine Cytosine Base Pairs
Molecular docking calculations clarify the structural basis of nucleic acid binding. The planar tricyclic chromophore stacks snugly between adjacent GC base pairs. Binding energy calculations yielded a favorable value of -6.7 kcal/mol. Peripheral hydroxyl and aminoalkylamino chains form discrete hydrogen bonds with oxygen and nitrogen atoms on the base pairs. These non-covalent interactions stabilize the intercalated complex. In real pharmaceutical injection assays, the DNA/BMIMS/ZIF-8/CPE sensor yielded recovery values between 97.4% and 102.8%. Analytical precision remained high across multiple sample replicates. While these results demonstrate strong performance in pharmaceutical formulations, sensor application in complex human serum matrices remains to be thoroughly evaluated in future clinical trials.
